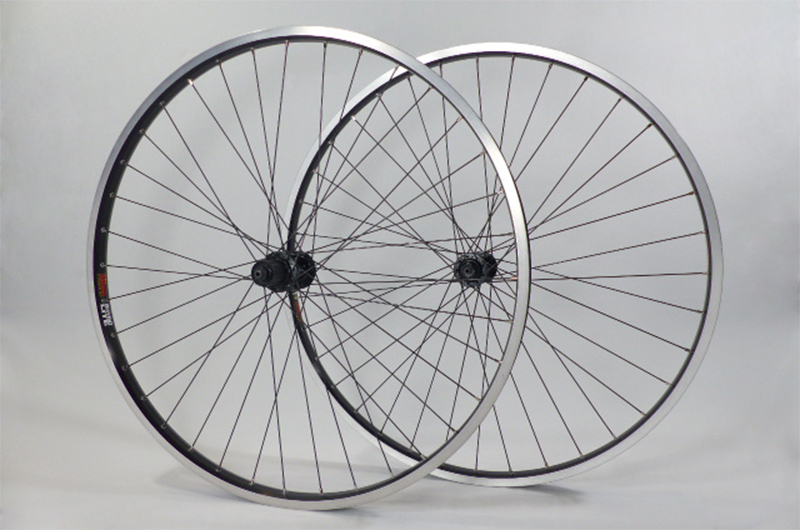

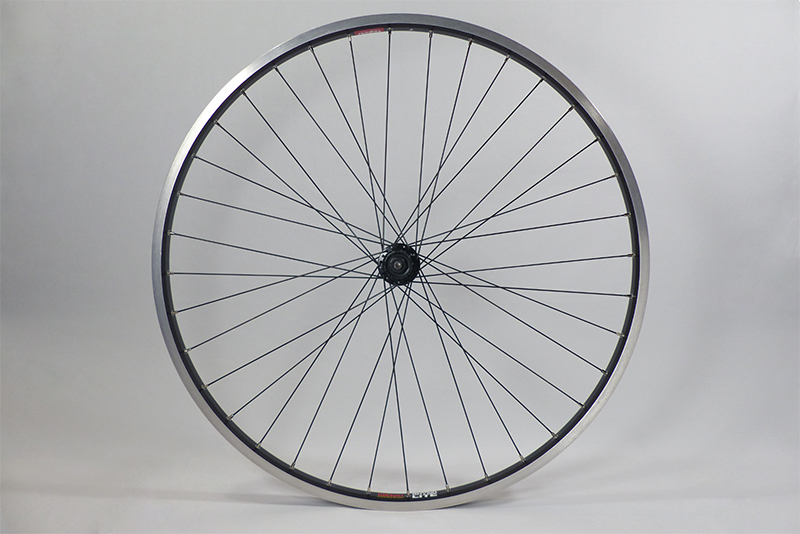

Classic XR Wheels from Vagari Cycling

$280.00 – $429.00

Tough enough for the rigors of mountain biking and trekking, the attractive Classic XR wheels will beef up any rim brake-equipped bike. Built to last, these wheels require less maintenance down-time and expense than other wheel brands, keeping you pedaling down the road, or trail, for many thousands of miles.

Being Vagari’s lightest wheel in our XR series, and having hubs with cup-and-cone bearings set into ultra-polished races, the Classic XR accelerates more quickly than our other XR offerings. You will enjoy these supremely smooth and comfortably riding wheels.

Built to Vagari’s high standards for durability, the Classic XR wheels tie a Shimano Deore hub to a Sun Ringle’ Rhyno Lite eyeleted, triple-box construction rim using 36 Sapim Race spokes laced in our strongest pattern. This wheel design easily exceeds the demands of off-road use on mountain, gravel, trekking, and hybrid bikes alike.

Save $$$ with the unmatched quality and longevity of Vagari handbuilt wheels.

*All Vagari Cycling wheels are 100% hand built by expert craftspeople in our northern California workshop—no machines or power tools ever touch our wheels!

PLEASE NOTE: The Classic XR is intended for use with 700×32 to 700×56 sized tires. See the Classic for use with 700×28 to 700×40 tires. For full sizing details and technical specs on our Classic XR wheels, please see the complete description below.

Vagari Cycling now offers:

  • FREE car-side pick-up at our San Bruno location.
  • FREE BART-side pick-up at the San Bruno station.
  • FREE track-side pick-up at San Bruno Caltrain station.
  • FREE SHIPPING to the lower 48 states.
Sold By: Vagari Cycling

San Bruno, California

SKU: N/A Categories: ,

ASK SELLER A QUESTION

Description

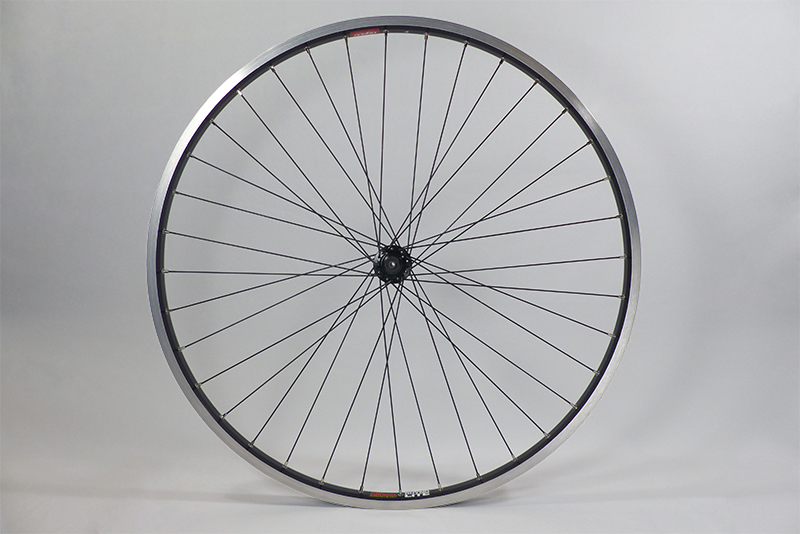

Vagari Cycling Classic XR wheels:

…are perfect for your bike that’s equipped with linear pull, cantilever, side- or center-pull caliper, or U-brakes. This wheel is not compatible with disc brake systems.

…are designed for bikes with a fork end spread of 100mm and a dropout spread of 135 millimeters, and using quick release skewers.

…happily mount tires from 700x32mm (ERTRO size 32-622) to 700x56mm (56-622), or 29×1.4 to 29×2.2. (To determine compatibility with your bike, check your current tire sidewall for size markings.)

*For riding on narrower casing width tires (tires narrower than 32mm), please refer to our Classic wheels.

The rugged, low profile aesthetic of the Classic XR wheel looks fabulous on any rim brake-equipped bicycle—be it a hybrid, 29er mountain, or Dutch-style city bike, using quick release  skewers.

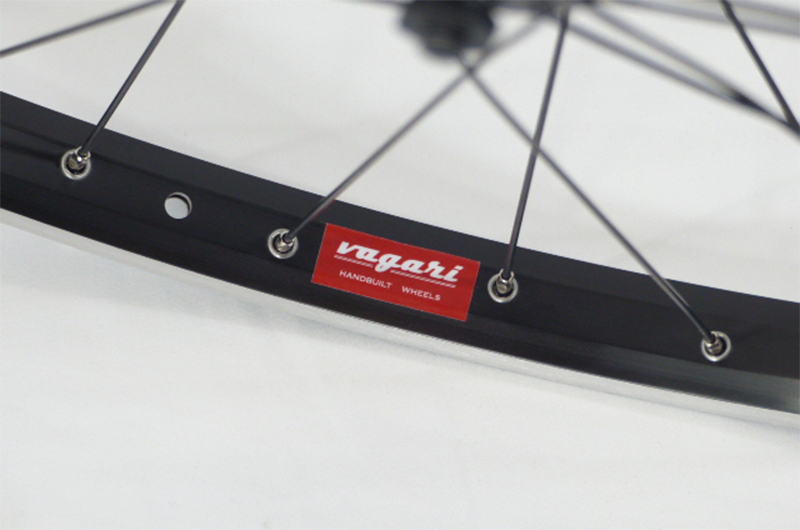

The black rims, hubs, and spokes—accentuated with a pop of silver at the nipples, rim eyelets, and rim brake tracks— make for extremely attractive wheels that remain looking stealthy long after the first few dozen rides….and no matter how dirty you get them.

At Vagari Cycling, we hand build every Classic XR wheel in our shop, right here in the U.S., using premium quality components that impress us.  By combining these parts with our decades of professional wheel building and bike repair experience, we create exceptional wheels that are more durable, longer lasting, and therefore more affordable than any other hand built or machine built wheels you can buy.

During every Classic XR wheel build we:

  • carefully inspect every component, and ensure all hubs are optimally adjusted so you get the best roll right out of the box.
  • thoroughly clean all spokes and nipples, and treat the spoke threads with spoke prep to make sure the wheels are built to last. (Machine built wheels are not treated with spoke prep, and lose spoke tension more quickly.)
  • lace each wheel with 36 spokes in our strongest 3-cross lacing pattern. (This makes for a wheel that has increased comfort in the ride, high lateral rigidity for improved steering response, and a stellar level of durability for many thousands of miles of riding.)
  • tension each wheel slowly, by hand, to eliminate thread galling, spoke wind up, and damaged nipple fittings. (This is something machines can’t do, and often leaves you replacing components and/or wheels prematurely.)
  • check the spoke tension at least 3 times, to make sure it’s perfect. (Properly tensioned wheels are stronger and stay true longer.)

What’s in our Classic XR wheel:

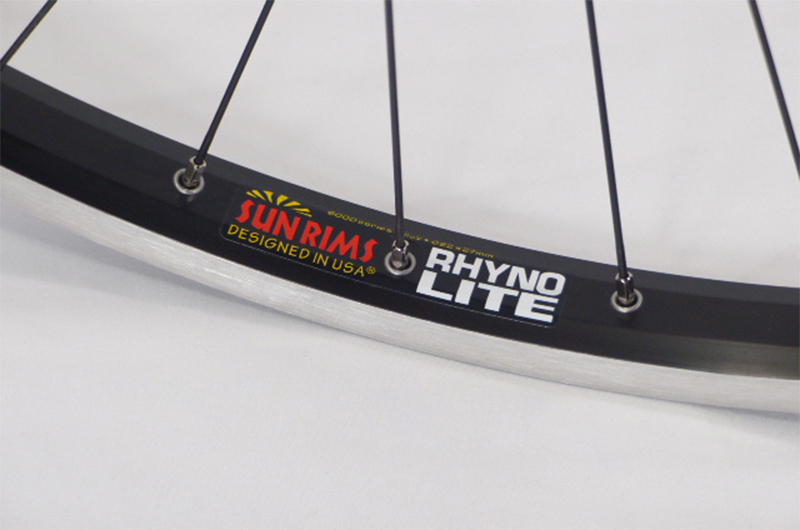

Rim: Sun Ringle’ Rhyno Lite, 36 hole, aluminum alloy, black with machined brake tracks

  • These low profile rims are more forgiving than deeper rims when the wheel encounters any variation in the riding surface, lending to a more comfortable ride.
  • The machined brake tracks, a.k.a. sidewalls, on the rim provide optimal braking with all brake pads
  • Double walls with triple-box construction—long proven in BMX racing to withstand more stresses than other designs—uses geometric complexity for strength to create an incredibly durable rim.

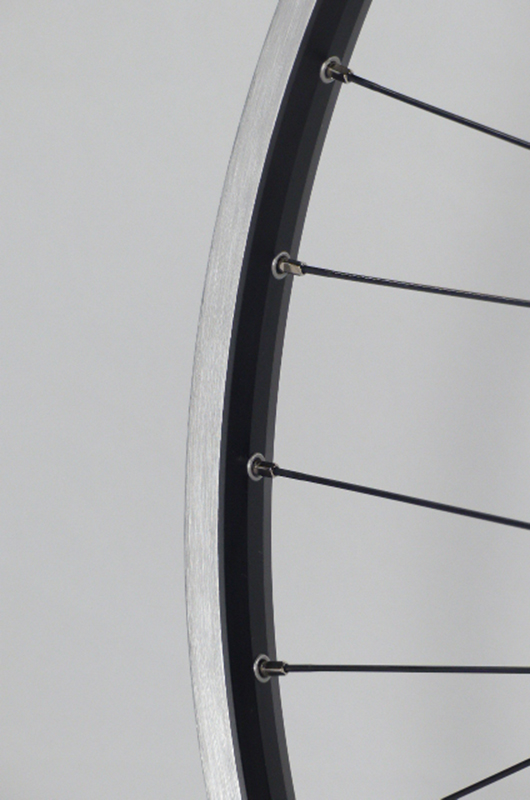

  • Nickel-coated brass spoke hole eyelets in the rims protect against micro-cracks from forming in the rim and helps prevent corrosion from seizing the nipples to the rim—no “frozen” nipples mean no broken nipples when truing the wheel.

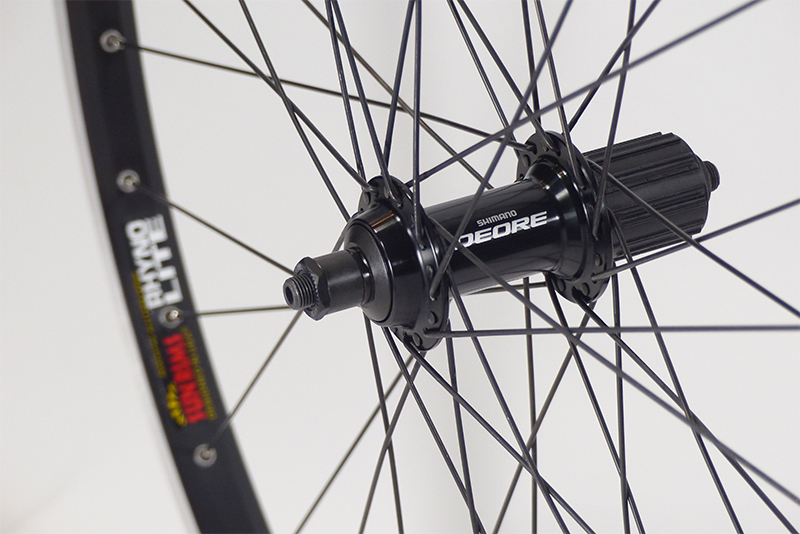

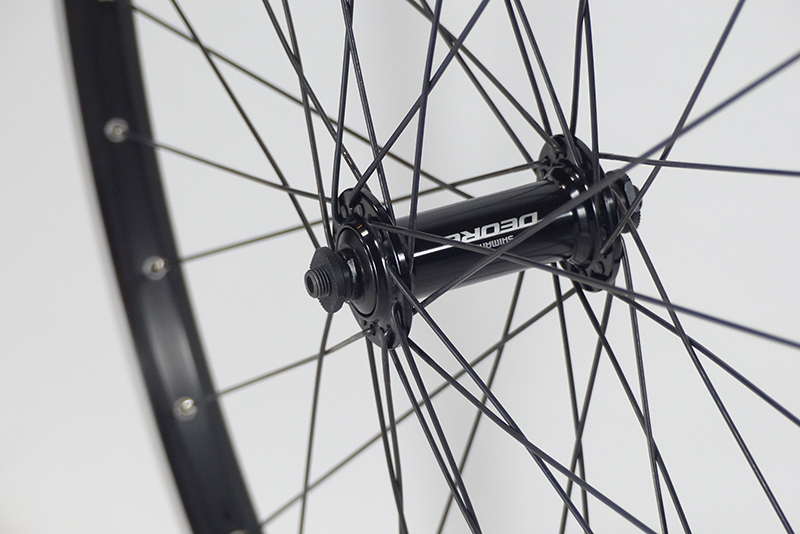

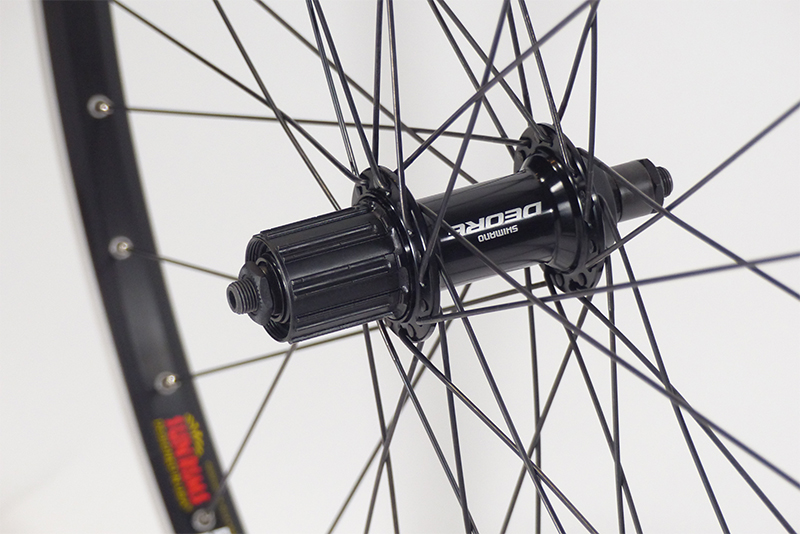

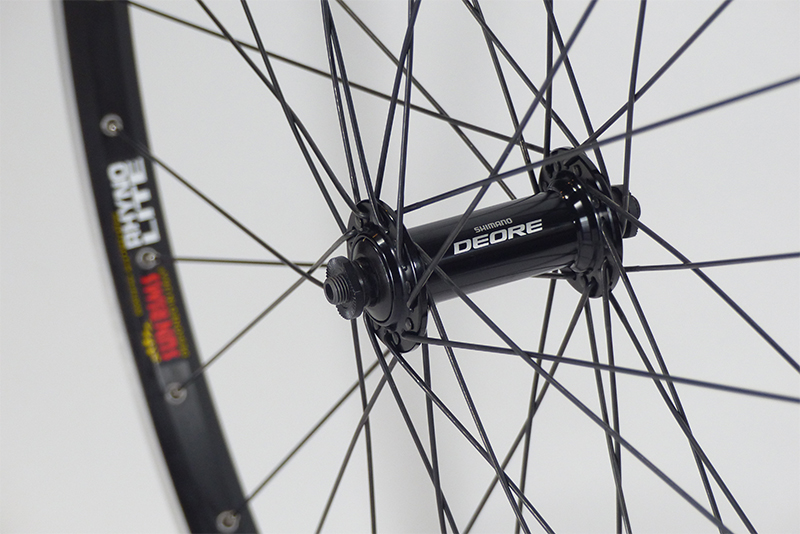

Hub: Shimano HB-T610 (front); Shimano FH-T610 (rear), both black

  • Rear hub is 8/9/10 and mountain 11 speed cassette compatible—also 7 speed compatible with a 4.5mm spacer.
  • Freehub rear—position of bearings better supports the axle, and protects against bending and breaking commonly found with freewheel systems.
  • Cup and cone design of these hubs allows for incredibly fast wheel rotation.
  • Super polished races prevent speed loss in corners, and allow for freakishly fast acceleration and rolling.
  • Double seals at each end to hold grease in, and to keep grime from entering and damaging the hub
  • Comes complete with quick release skewers

Spokes: Sapim Race, double-butted, stainless steel, J-bend, black

  • Stainless steel resists corrosion in all types of environments.
  • Sapim uses a stainless steel recipe and manufacturing processes that are superior to leading competitors—resulting in far fewer spoke failures.
  • Treated with black oxidation process that produces a sleek black finish that won’t chip
  • Double-butted Race spokes from Sapim have the right mix of elasticity for better shock absorption, and higher tensile strength to withstand greater shock forces—they hold up to road variations (rough roads, train tracks, etc.), and heavier load applications, better and longer than any other spoke we have used.

Nipples: Sapim Polyax, nickel-coated brass

  • Sapim Polyax brass nipples are many times stronger and more reliable than aluminum—they are much less likely to become brittle and crack from everyday riding stresses and environmental factors.
  • Polyax hemispherical head design more evenly distributes spoke tension pull, and helps prevent tearing through the rim.
  • Brass best holds up to maintenance—the “flats”, or spoke wrench fittings, are far less likely to round out during adjustments.
  • Brass is less likely to seize to the spoke or the rim due to galvanic corrosion—no “frozen” nipples mean no cracked or sheared nipples when truing the wheel.

Specs:

Wheel size: 700c/ 29er

Brake Compatibility: Rim       This wheel is not compatible with disc brake-equipped bikes.

O.L.D. (Over-Lock-nut Dimension): 100mm Front / 135mm Rear

This is the measurement between the outside faces of the locknuts on the front and rear hubs—and should match the spread between the fork ends and also the rear dropouts on your bike frame.

Axle: Quick release (skewer included)

Hub: Shimano HB-T610 (front); Shimano FH-T610 (rear), freehub

  • rear is 8/9/10 and mountain 11 speed cassette compatible (7 speed compatible with a 4.5mm spacer)
  • accepts Shimano- and SRAM-compatible cassettes

Rim: Sun Ringle’ Rhyno Lite, 36 hole, aluminum alloy triple hollow construction, nickel-coated brass eyelets, black with machined silver brake tracks

Valve Stem Type: Presta

Internal Rim Width: 22mm

External Rim Width: 27mm

Recommended Tire Sizes: 700x32mm to 700x56mm, or 29×1.4 to 29×2.2; these wheels are not tubeless-ready

Spokes: Sapim Race,double-butted, stainless steel, J-bend, black

Nipples: Sapim Polyax, nickel-coated brass

Lacing Pattern: 3 cross

Comes with rim tape installed
